Zerosquare

How to add a rotary knob to your Jaguar controller

Recommended Posts

Zerosquare    10

Several games on the Jaguar are more fun to play if you have a rotary controller (there's Tempest 2000 of course, but also Kobayashi Maru by Reboot for example). Here's a little tutorial to build one from a standard Jaguar controller, without losing the ability to use the D-pad for "normal" games.



What you need :

- a standard Jaguar controller, obviously :P

- a mechanical encoder, preferably without detents (i.e. that rotates freely without "clicks"). The number of steps per revolution will determine how sensitive the knob is ; 24 to 36 steps is fine.

- a knob to put on top of the encoder

- a DPDT switch. It will be used to switch between "normal" and "rotary" mode.

- some wires, a soldering iron with solder, some heatshrinking tubing if you want to be neat



The encoder, knob and DPDT switch are not very expensive ; I paid 5€ (about $6.50) for all three.



The first step is of course to take your controller apart. The screws are hidden under round, adhesive pieces of rubber ; lift them gently with a screwdriver.

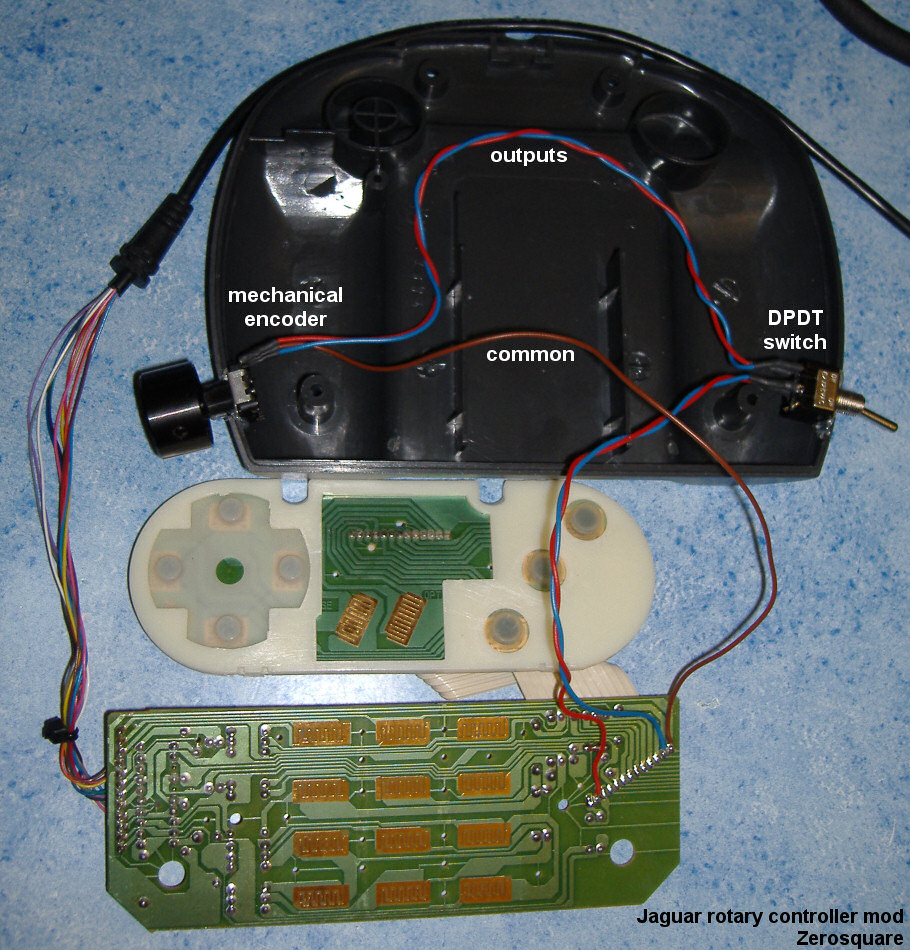

Then pretty much everything you need to do is summed up in this picture :




Before closing the controller, check that everything is working fine. If the rotary part works backwards, swap the outputs of the encoder.

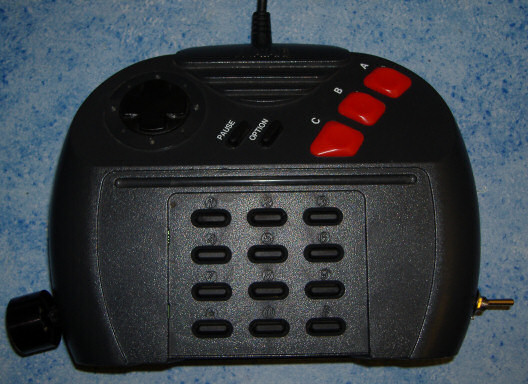

And this is how the result looks like :


Share this post


Link to post
Share on other sites
Zerosquare    10

An extra tip for using it with Tempest 2000 :



To use rotary controllers in Tempest 2000, you first need to enable the hidden option. But if you only have one controller, you're stuck, because you need to have two controllers connected and hold the Pause button on both.

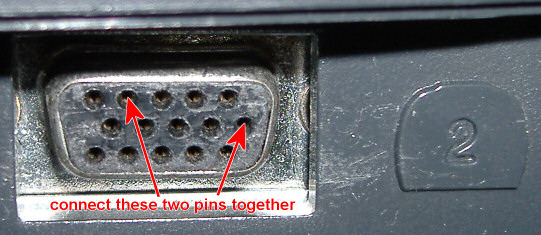

Fortunately, there's an easy way to cheat. Use a piece of wire (or a bent paper clip) to connect together pins 4 and 6 on the right controller port, like this :




This will simulate holding the Pause button on the right controller. With the wire in place, just press Pause on the left controller, and you'll unlock the option. Once this is done, you can remove the wire and throw it away -- you won't ever need it again, since Tempest saves the setting in the cartridge memory.

Share this post


Link to post
Share on other sites
GT Turbo    3

Very great thing Zero :) Two questions, the red wire is soldered on the first or second plot on the left ? And the second one is, where the Rotary is putted it's not difficult to play ?





GT :poulpe::yes:

Share this post


Link to post
Share on other sites
Zerosquare    10
the red wire is soldered on the first or second plot on the left ?
It's on the second pad from the left.



And the second one is, where the Rotary is putted it's not difficult to play ?
No, actually is pretty comfortable :)

Share this post


Link to post
Share on other sites
ggn    0

Zerosquare is being a bad boy again, he's demystifying Jaguar stuff again :P. Great stuff!



By the way, I've patched T2k so you don't need to press anything for the hidden controller menu to appear. So less stuff to remember :). Anyone interested?

Share this post


Link to post
Share on other sites
sh3-rg    6

Made one of these zeortary controllers, works well (although I had left/right the wrong way 1st go, oh well, I expected it :P ). Used a 24ppr no detents encoder, works nicely. Have enough bits to make some more, works out at £2 for each pad for the encoder, switch and knob - bargain!

Share this post


Link to post
Share on other sites
sh3-rg    6
You still need to plug in a regular pad to select the corresponding menu



Even if you have a nice rotary with a switch? :poulpe:
