Jaguar Joypad Schematic

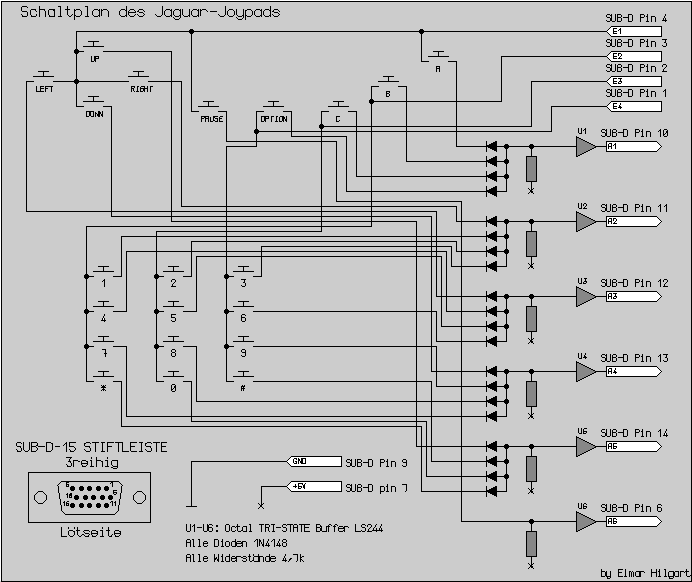

Pictured below is a well drawn Jaguar joypad schematic. I got this from the DoIt Archive from a site in Germany. The text in the archive is in German and some of it in English. It has some very good reference information. The author of the PROFIJAG archive is Robert Schaffner. And this archive can be found at http://www.atari-computer.de/doitarchive/index.htm.
